Amplifier

I want to make a list of all amplifiers we have used.

Wide bandwidth

Mini-circuits ZX60-8008E or ZX60-8008E+. We use it to amplify beating signal of two lasers, we need to achieve 0dBm and send it to phase-lock box.

Company	partial #	min Frequency (MHz)	max Frequency (MHz)	amplification	Maximum power input (dBm)	Maximum power output (dBm)	package	power supply	application	price	comments	photo
Mini-circuits	ZX60-8008E	20	8000	7dB @ 7GHz	?	?	SMA female	+12 V	We use it to amplify beating signal of two lasers, we need to achieve 0dBm and send it to phase-lock box.	50$	Very expensive delivery 100 CAD
Mini-circuits	ZX60-83LN+	500	8000	20.8dB @ 7GHz	?	?	SMA female	+12 V	We use as first LNA in the cascade to amplify beating signal of two lasers, we need to achieve 0dBm and send it to phase-lock box.	155$	Very expensive delivery 100 CAD
Chinese small amplifier	NoName	0.1	2000	31dB @ 500MHz 20dB @ 2000MHz		10	SMA female	+6-12V	General purpose	~12-15$	Free Slow delivery
Chinese medium amplifier	NoName	1	500	32dB @ 500MHz	0 ?	32	SMA female	+12V	AOM Driver	~32$	Free Slow delivery
Chinese large amplifier	NoName	2	80	32dB @ 500MHz	0 ?	36	SMA female	+12V	AOM Driver	~55$	Free Slow delivery



How to fix mini-circuits

ZFL-100LN+

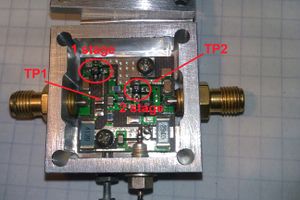

ZFL-100LN from mini-circuits, the circuit inside.

Just in case if the original page is lost [[1]]. Here is a translation: "This amplifier consists of two stages. The first one uses MAR-6SM+, the second one uses MAR-3SM+. Both of them are monolithic amplifiers from mini-circuits. To check which stage of amplification is out of order you can measure voltage in two points (see picture). The voltages should be as follows: V(TP1)=3.5V, V(TP2)=5V. If any of them differs replace the corresponding amplifier."







ZHL-32A

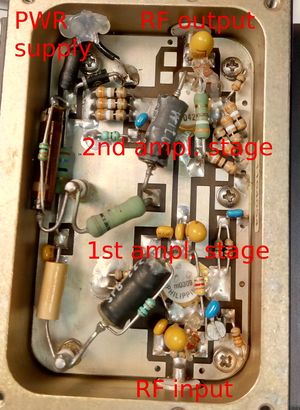

ZHL-32a from mini-circuits, the circuit inside.

As you can see on a picture it consists of two stages of amplification. Each is based on NPN transistor, and this is the most vulnerable point. The possible replacement is Mrf323 [[1]](macom). The necessary case is 244-04.
